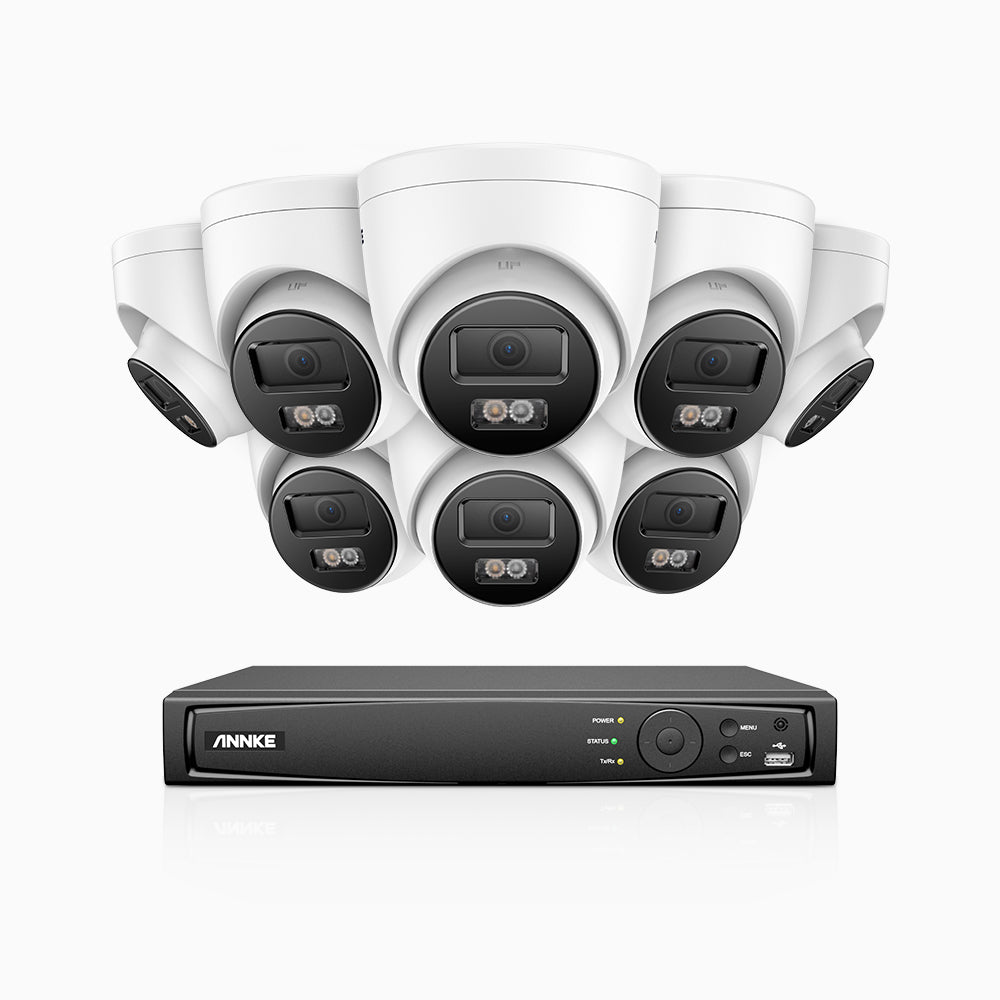

H800 - 4K 16 Channel 8 Cameras PoE Security CCTV System, Human & Vehicle Detection, Colour & IR Night Vision, Built-in Micphone, RTSP Supported

H800 - 4K 16 Channel 8 Cameras PoE Security CCTV System, Human & Vehicle Detection, Colour & IR Night Vision, Built-in Micphone, RTSP Supported

£585.99

£937.99

VAT Included

SKU: AK-N46PCK-I91DL08

Appearance
HDD Capacity
Note:This product will ship around early June

Tags: 16CH NVR , 4K 8MP , 8 , Built-in Microphone , Bullet , Dome , EXIR Night Vision , Turret

H800 – Best 4K Security Camera System

Make 4K UHD Protection
Available at Every Angle

  • 16CH

    NVR Support Max.
    16 Cameras

  • 8 CAMS

    4K UHD
    Cover Every Angle

  • 4 MM

    Cover Wider Areas
    Grasp All Details

  • 100 FT

    EXIR Night Vision
    View Clearly at Night

Unrivaled 4K in All Environments

H800 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

Capture Clear Night Detail by Smart Dual Light

Default smart dual light mode in night, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear colour image. In addition, you can also choose full infrared or full white light mode.

High-Fidelity Audio Recording

The built-in noise-cancelling microphone records clear voice from up to 20 ft away, enhancing the security coverage & the ability to interpret events. (Note: The listen-audio can be disabled.)

True Plug & Play PoE Setup

The PoE connection is perfect, as both video & power are transferred via the same network cable, and gives you flexible installation. You can run a single Ethernet cable between the camera & NVR up to 330 ft. For longer distance, you can hook up a PoE switch (not included).

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 4K quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 4K Live View

    View high-quality 4K Ultra HD live stream on your smart devices without all the data.

A Truly Weatherproof Security Camera

Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

Check IP67 Weatherproof Real Performance

  • Metal & ABS

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

Remote Viewing on the Go

This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

Small on Prices, Big on Features

  • Support RTSP

    Integrate the system to third-party software 4K cameras, like Blue Iris, Synology, etc.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Instant Motion Alerts

    Receive real-time app push notifications & email alerts when there are motion events.

  • 24/7 Record Without Internet

    The NVR & cameras link to each other after plug in & record videos 24/7 without Internet.

Specification

Download H800 Specification

What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
Camera
Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Audio InputBuilt-in Microphone, record with audio Lens4 mm
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
Image Sensor1/2.4" Progressive Scan CMOS
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Bitrate32 Kbps - 16 Mbps
Audio InputBuilt-in Microphone, record with audio
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light RangeUp to 30 m
Image EnhancementBLC, HLC, 3D DNR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Region of Interest (ROI)1 fixed region for main stream
General FunctionRotate mode, mirror, password protection, remote access
Max resolution 3840*2160(8MP)
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Lens 4 mm
Min. Illumination Colour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Supplement Light Type Smart Dual-Light, IR, White Light
Motion detection 2.0 Supoort, include Human & Vehicle detection
Wide Dynamic Range 120 dB WDR
API Open Network Video Interface Version (Profile S, Profile T, Profile G)
Privacy Mask 4 programmable polygon privacy masks
Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
General
HousingMetal & Plastic Colour White & Black
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") Weight0.6 lb./285 g
HousingMetal & Plastic
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Indoor/Outdoor UseIndoor/Outdoor
Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Colour White & Black
Hardware Reset Yes
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Interface Protection IP67
Weight 0.6 lb./285 g
What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
Camera
Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
Video Bitrate32 Kbps - 16 Mbps Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Supplement Light TypeSmart Dual-Light, IR, White Light
Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
Audio InputBuilt-in Microphone, record with audio Lens4 mm
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
Image Sensor1/2.4" Progressive Scan CMOS
Video Bitrate32 Kbps - 16 Mbps
Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Supplement Light RangeUp to 30 m
Audio InputBuilt-in Microphone, record with audio
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Image EnhancementBLC, HLC, 3D DNR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Region of Interest (ROI)1 fixed region for main stream
General FunctionRotate mode, mirror, password protection, remote access
Max resolution 3840*2160(8MP)
Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type Smart Dual-Light, IR, White Light
Motion detection 2.0 Supoort, include Human & Vehicle detection
Lens 4 mm
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Wide Dynamic Range 120 dB WDR
API Open Network Video Interface Version (Profile S, Profile T, Profile G)
Privacy Mask 4 programmable polygon privacy masks
Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
General
HousingMetal & Plastic Colour White
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 & IK08
Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") Weight1.2 lb./550 g
HousingMetal & Plastic
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Indoor/Outdoor UseIndoor/Outdoor
Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
Colour White
Hardware Reset Yes
Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C
Interface Protection IP67 & IK08
Weight 1.2 lb./550 g
What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
Camera
Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Audio InputBuilt-in Microphone, record with audio Lens4 mm
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
Supplement Light RangeIR: up to 30 m, white Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
Image Sensor1/2.4" Progressive Scan CMOS
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Bitrate32 Kbps - 16 Mbps
Audio InputBuilt-in Microphone, record with audio
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light RangeIR: up to 30 m, white Light: up to 20 m
Image EnhancementBLC, HLC, 3D DNR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Region of Interest (ROI)1 fixed region for main stream
General FunctionRotate mode, mirror, password protection, remote access
Max resolution 3840*2160(8MP)
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Lens 4 mm
Min. Illumination Colour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Supplement Light Type Smart Dual-Light, IR, White Light
Motion detection 2.0 Supoort, include Human & Vehicle detection
Wide Dynamic Range 120 dB WDR
API Open Network Video Interface Version (Profile S, Profile T, Profile G)
Privacy Mask 4 programmable polygon privacy masks
Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
General
HousingMetal & Plastic Colour White
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Weight0.7 lb./340 g
HousingMetal & Plastic
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Indoor/Outdoor UseIndoor/Outdoor
Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
Colour White
Hardware Reset Yes
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Interface Protection IP67
Weight 0.7 lb./340 g
Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input16CH PoE
Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel16CH
Max Playback Capacity4CH @1080p; 1CH @8MP
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
Video OutputHDMI up to 4K; VGA up to 1080p
Incoming Bandwidth80 M
Max Playback ResolutionUp to 8MP (3840 X 2160)
Max Playback Capacity4CH @1080p; 1CH @8MP
IP Video Input 16CH PoE
Audio Input/Output 1/1 RCA
Max Recording Resolution Up to 8MP (3840 X 2160)
Max Playback Channel 16CH
Hard Drive
HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
HDD1 SATA Interface
HDD Capacity Up to 6 TB Capacity for Each HDD
External Interface
Network InterfaceRJ45 X1 (10/100 M ) PoE8 Ports (IEEE802.3at / af)
USB2X USB 2.0
Network InterfaceRJ45 X1 (10/100 M )
USB2X USB 2.0
PoE 8 Ports (IEEE802.3at / af)
General
Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
Power Consumption≤10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Operating PowerDC 48 V
Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
Weight (Without Hard Disk) 2.2 lbs./1 kg
Power Consumption≤10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port

Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mehmet Ali Gulkan
Hi

I haven't installed it yet because I will install it at my home abroad when I go on summer vacation.

C
Colin White
Great system

A great quality easy to install system. Only one slight niggle would be how tight the cables are wrapped, especially the long ones making them a bit awkward to use .

S
SM Cafe

….

S
Simon H
Very impressed

Having bought this to upgrade my system from a 1080p one, I have to say, the image quality is awesome. I went for the turret designed cameras.
I also bought the ACZ 800 PTZ camera to go with it and I am very impressed with the system as a whole.
The desktop functionality is not as intuitive as I have had before, but just takes a little getting used too. The app and set up was fairly straight forward.
I would have preferred the cameras to be in black, bu wasn't an option. The audio is very good, provided the cameras are in an area sheltered from wind.
Is a very good system, would absolutely recommend

H
Hossam Saad
Great

Very nice product and works well. Easy to install and observe.
