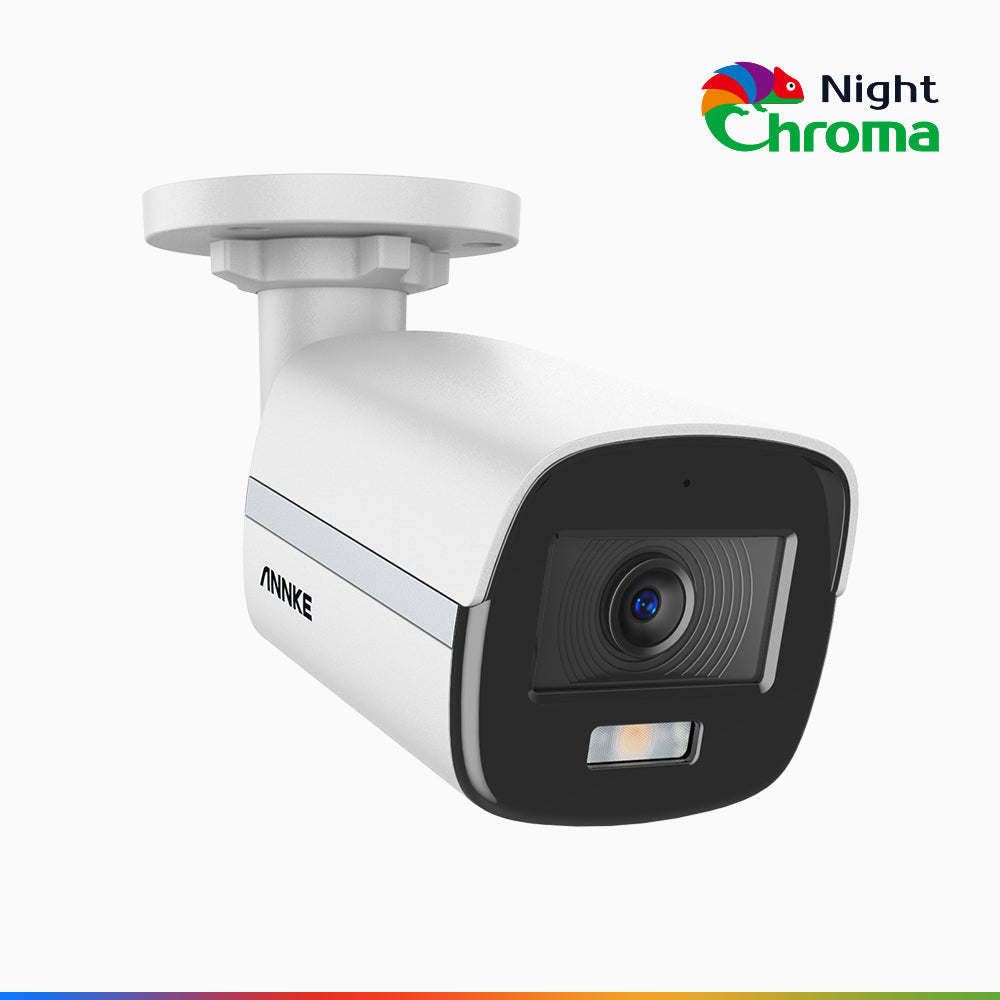

NightChroma^TM NCA500 - Updated Version, 3K Acme Colour Night Vision Security TVI Camera, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

NightChroma<sup>TM</sup> NCA500 - Updated Version, 3K Acme Colour Night Vision Security TVI Camera, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

NightChroma^TM NCA500 - Updated Version, 3K Acme Colour Night Vision Security TVI Camera, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

£39.99

£69.99

VAT Included

SKU: AK-CR1CY0102

Secure Checkout With:

Paint Starry Night into
3K Colourful World

3K

Super HD
Clear Image

Colour

Night Vision
View Colours at Night

102° FOV

2.8 MM Lens
Cover Wide Areas

IP67

Weatherproof
Brave All Climates

ANNKE-Only Acme Colour Night Vision

Say goodbye to boring B&W or blurry colour night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colourful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.

Only security cameras with f/1.0 super aperture can capture acme colour night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

The 3K CMOS image sensor empowers this camera to capture astonishingly sharp and detailed visuals, providing a resolution that surpasses standard security cameras. With a superior pixel count, every frame is packed with rich, vibrant colours.

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

The soft supplement light turns on automatically in 0 lux illumination to ensure the best colour night vision without glare. Remove overexposed or underexposed issues & capture 3K footages with balanced lighting.

Audio Recording with Built-in Mic

The camera's built-in microphone supports coaxial transmission, allowing you to hear and record crisp, clear audio without using any additional cables to power the microphone.

4-in-1 HD TVI/CVI/AHD/CVBS

One port for four switchable signals(TVI/AHD/CVI/CVBS), you can select from a wide range of compatibility with the camera’ s selectable output.

Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – digital WDR, 2D DNR, BLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colours that wasn’t possible before.

24/7 Security with ANNKE 4K Ultra HD DVR

ANNKE 4K UHD DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA500 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees. Note: NCA500 needs a DVR for live stream & recording, and it CANNOT work standalone.

Uninterrupted Surveillance, Even in Extreme Environment

Engineered to thrive in the harshest environments while providing steadfast surveillance capabilities. With an IP67 rating for water and dust resistance, coupled with an impressive operating temperature range of -40 °F to 140 °F (-40 °C to 60 °C), this camera is the epitome of durability and reliability.

-40 °F | -40 °C

Cold Rating

Plastic

Rugged Housing

140 °F | 60 °C

Hot Rating

IP67

Water Rating

Specification

Download NCA500 Specification

What's in the Box

1X Camera(s)

1X BNC Cables(s)

1X Power Adapter

1X Mounting Screws Bag

1X User's Manual For Camera

Camera

Image sensor3K CMOS Image sensor	Video Resolution2960 (H) × 1665 (V) (16:9)
Signal SystemPAL/NTSC	Lens2.8mm
Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC	Video Output BNC, switchable TVI/AHD/CVI/CVBS
Min.IlluminationColor:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light	Angle of ViewHorizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
Supplement Light type1 white Light	Supplement Light Rangewhite Light : Up to 20 m
Wide Dynamic RangeDigital WDR	AudioBuilt-in mic
Day/Night ModeColor

Image sensor3K CMOS Image sensor

Signal SystemPAL/NTSC

Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC

Min.IlluminationColor:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light

Supplement Light type1 white Light

Wide Dynamic RangeDigital WDR

Day/Night ModeColor

Video Resolution 2960 (H) × 1665 (V) (16:9)

Lens 2.8mm

Angle of View Horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°

Supplement Light Range white Light : Up to 20 m

Audio Built-in mic

Video Output BNC, switchable TVI/AHD/CVI/CVBS

General

HousingPlastic	ColorWhite
Operating Power12 VDC ± 25%	ConsumptionMax. 2.9 W
Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C	Indoor/OutdoorIndoor/Outdoor
Weatherproof RatingIP67	Dimension (L x W x H)161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
WeightApprox. 238 g (0.52 lb.)

HousingPlastic

Operating Power12 VDC ± 25%

Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C

Weatherproof RatingIP67

WeightApprox. 238 g (0.52 lb.)

Color White

Consumption Max. 2.9 W

Indoor/Outdoor Indoor/Outdoor

Dimension (L x W x H) 161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")

NightChromaTM NCA500 - Updated Version, 3K Acme Colour Night Vision Security TVI Camera, 2960 × 1...

I use this camera together with a DW81KD recorder. The camera is mounted in my attic in order to monitor suspected rodent infestation. The wide-angle aperture gives full coverage of the floor area and the image is bright and crisp throughout the entire depth of field. Overall, the camera delivers outstanding quality for a very reasonable price. Thoroughly recommended.

Audio cable

Please could you advise on where I would be able to buy this ?

Not perfect

The fact that these cameras work in zero light is amazing however, to to that it relies on the lamp being on all the time which is a bit annoying that you can’t switch it off!
The other issue I have is that there is a distinct band covering about 10% top and bottom of image.. doesn’t affect it too much, but still annoying

Good cameras

The NCA500 was a perfect camera except for one thing which is that they require the led light to be on constantly at night, with no option to configure the light to come on at night only when motion is detected. Otherwise still a very good camera depending on ones requirements.

Great quality for a great price

I have fitted this camera on a system which has other more expensive cameras from one of the leading manufacturers and there is almost no difference, the only one is the Annke camera has a slightly wider field of view. The image quality on all the color vu cameras I have is not as good as that from "normal" cameras within the same price range
