ANP1600 - 4K 8CH H.265+ PoE NVR with 4K Decoding Capability, Dual Hard Drive Bays

ANP1600 - 4K 16 Channel H.265+ PoE NVR, Max 160 Mbps Outgoing Bandwidth, 2CH 4K Decoding Capability, Supports IPC with Human & Vehicle, Perimeter Detection, Dual Hard Drive Bays

ANP1600 - 4K 16 Channel H.265+ PoE NVR, Max 160 Mbps Outgoing Bandwidth, 2CH 4K Decoding Capability, Supports IPC with Human & Vehicle, Perimeter Detection, Dual Hard Drive Bays




Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 16-Channel NVR , 4K Ultra HD

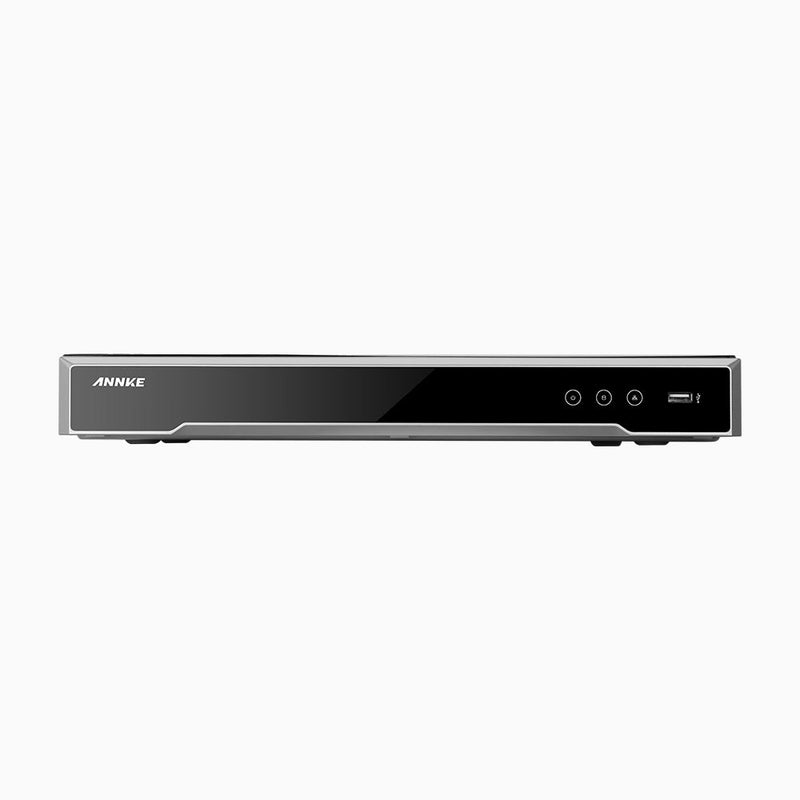

    16CH 4K PoE Network Video Recorder

    Makes 24/7 Unfailing Recording a Breeze

  • 16CH

    Max. 4K Record

  • 4K

    Ultra HD
    See All the Details

  • PoE

    Plug & Play
    With One Cable

  • 2 X 10TB

    Max. 20 TB Capacity

  • Longer & Smoother Videos with H.265+ Coding

    With industry-leading H.265+ coding, the recorder records longer and smoother videos by consuming less storage space and bandwidth. Cut down the latency hassle and extra spending on purchasing more HDDs.

    Customized Motion Areas

    Customize the vital areas, like the front door, and garage, to receive alerts only when motion events happen in these areas. Cut down unnecessary alerts.

    Smart Motion-Triggered Alerts

    Whenever there are motion events, you will receive real-time app push notifications and email alerts with snapshots, which allows you to keep track of all motion activities easily & instantly.

    Easy-Peasy Smart
    Search & Playback

    Locate the important clips containing motions among all video footage within seconds. Just play back the events you want without wasting your time on the boring and empty recordings.

    The Most Secure Encryptions Ever

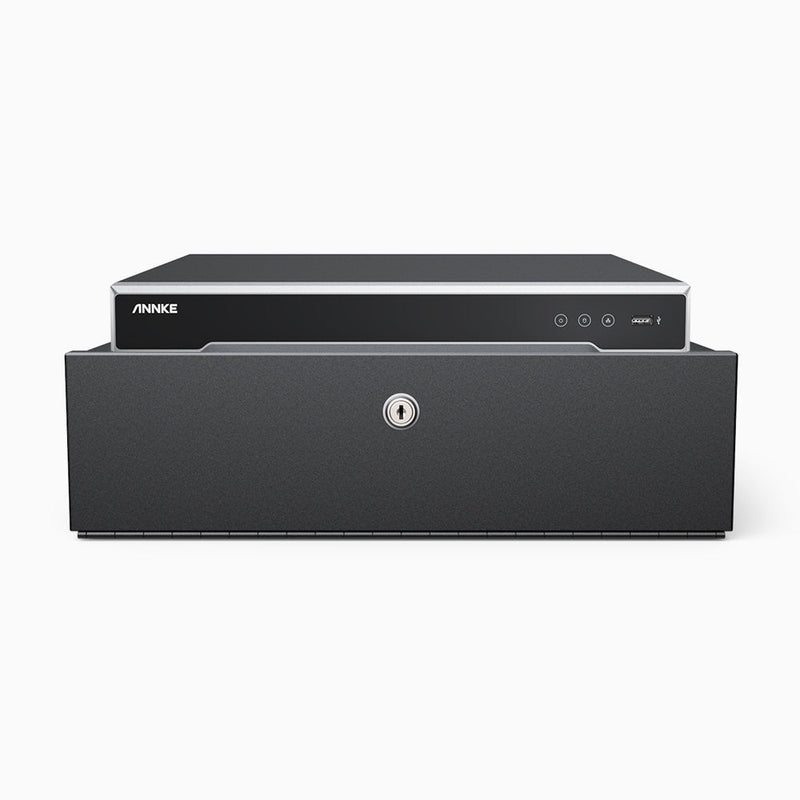

    Activate your NVR firstly before the setup and connection. Prevent the illegal hacking or cyber attack with default account and password. Integrate the heavy-duty NVR/DVR lock box to further protect your valuable data.

    Easiest Plug & Play PoE

    Simply connect IP cameras to the NVR PoE ports with just an Ethernet cable. The cable provides up to 300 ft of data & power transmission distance. PoE allows you to install your cameras wherever you need monitoring, without worrying about the lack of outlets.

    Hey Alexa! Show Me ANNKE Camera

    Get fastest access to your NVR via 100% hands-free voice control. Use simple verbal commands “Alexa, show me front door camera” to get instant live view by integrating this recorder with an Amazon Alexa device.


    View Your Home, Away from Home

    This all-in-one NVR is designed for use with our innovative & intuitive app or software. Make you always stay connected with your properties or families remotely, via your smartphones, tablets or computers for live stream or playback, whether you are at work or in the traveling.


    Download NVR Specification

    What's in the Box
  • 1X NVR
  • 1X Ethernet Cable
  • 1X USB Mouse
  • 1X User Manual
  • NVR
    Video CompressionH.264+/H.264/H.265/H.265+ Incoming Bandwidth160 Mbps
    Outgoing Bandwidth160 Mbps IP Video Input16CH PoE
    Video OutputHDMI up to 4K, VGA up to 1080p Audio Input/Output1/1 RCA
    Max Recording ResolutionUp to 8MP (3840 X 2160) Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Channel16CH ONVIF ProtocolsSupport
    HDD2 SATA Interface HDD CapacityUp to 10 TB Capacity for Each HDD
    Max Playback Capacity2-Channel@8MP(30 fps);
    4-Channel@4MP(30 fps);
    8-Channel@1080p (30 fps)
    Power Consumption≤15 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Network InterfaceRJ45 X1 (10/100/1000 M) PoE16 Ports (IEEE802.3af/at)
    Alarm Input/Output4/1 USB1X USB 2.0; 1X USB 3.0
    Operating Power100 to 240 VAC Working Temperature14 °F ~ 131 °F/-10 °C ~+55 °C
    Dimensions (W X H X D)15.2" × 12.4" × 2.0"/385 × 315× 52 mm Weight (Without Hard Disk) 6.6 lbs./3 kg
    Video CompressionH.264+
    Video OutputHDMI and VGA up to 1080p
    Max Recording ResolutionUp to 5MP (2560 X 1920)
    Max Playback Channel4CH
    HDD1 SATA Interface
    Network InterfaceRJ45 X1 (10/100 M)
    WiFi2.4 GHz (Built-in Antenna)
    HousingMetal for Main Part
    Power Consumption6W (Without HDD)
    IP Video Input 8CH Wireless
    Audio Output Support
    Max Playback Resolution Up to 5MP (2560 X 1920)
    Max Playback Capacity 4CH 3MP/2CH 5MP
    HDD Capacity Up to 6 TB Capacity
    Wireless Antenna 2 Ports (IEEE802.11b/g/n)
    USB USB 2.0 X1
    Operating Power DC 12 V
    Working Temperature 14 °F — 131 °F/-10 °C — 55 °C
