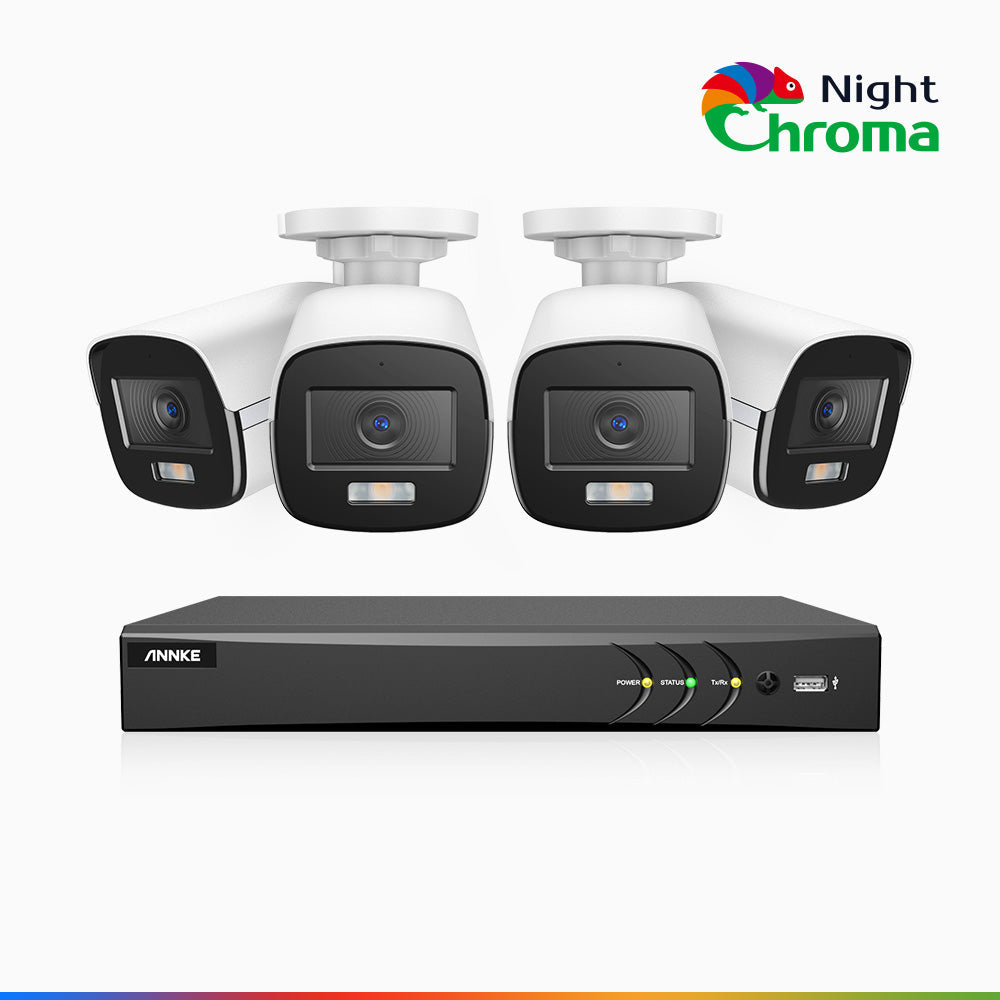

NightChroma^TM NAK500 - 5MP 8 Channel 4 Cameras Wired CCTV System, Acme Colour Night Vision, f/1.0 Super Aperture, 0.0005 Lux

NightChroma<sup>TM</sup> NAK500 - 5MP 8 Channel 4 Cameras Wired CCTV System, Acme Colour Night Vision, f/1.0 Super Aperture, 0.0005 Lux

NightChroma^TM NAK500 - 5MP 8 Channel 4 Cameras Wired CCTV System, Acme Colour Night Vision, f/1.0 Super Aperture, 0.0005 Lux

£272.99

£373.99

VAT Included

SKU: DT81DX+CR1CJ*4

Bullet

Turret

NO HDD

1 TB

2 TB

3 TB

4 TB

6 TB

DIY Your Camera Color >

Secure Checkout With:

Paint Starry Night into
5MP Colourful World

8CH

DVR
Support Max. 8 Cams

COLOUR

Night Vision
View Colours at Night

4 CAMS

5MP Super HD
See Further & Clearer

IP67

Outdoor
Indoor Use

World’s FIRST & ANNKE-ONLY
Acme Colour Night Vision

NightChorma^TM NAK500 takes smart security to the next level with unrivaled acme colour night vision. Say goodbye to boring B&W or blurry colour night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colourful world even in 0.0005 lux conditions without ambient lighting, or 0 lux with the supplement light.

Only security cameras with f/1.0 super aperture can capture acme colour night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colourful details.

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

The soft supplement light turns on automatically in 0 lux illumination to ensure the best colour night vision without glare. Remove overexposed or underexposed issues & capture 4MP footages with balanced lighting.

World’s FIRST & ANNKE-ONLY Acme Colour Night Vision

f/1.0 Super Aperture

Powerful BSI Sensor

Active Alignment Tech

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

100 ft Supplement Light

2K 5MP Super HD at Smooth 20 fps

The 5MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 30 fps in 5MP Super HD, or 30 fps in 4MP. This high frame rate will help capture the precise & vivid moments in your garages, studios, luxury or jewelry stores, candy houses.

4 Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – 130 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colours that wasn’t possible before.

4 Top-of-the-Line Image Enhancement Technologies

130 dB True WDR

BLC

HLC

3D DNR

Triple & Flexible Video Recording Modes

Your DVR can record videos continuously, during scheduled periods or when motion is detected. The recording modes can be specified for each camera, so you can customize the cameras in higher activity areas to record 24/7, while cameras in low activity areas can be set up to record motion events only.

Industry-Leading H.265+ Video Format

H.265+ video compression tech consumes less bandwidth & storage space than H.264, without losing 5MP Super quality. Quadruple H.265+/H.265/H.264+/H.264 video format allows for maximum encryptions and backward compatibility with legacy platforms.

Small File Sizes

Send smaller file sizes to the WiFi network video recorder without losing 5MP quality.

Long Recording Time

H.265+ coding allows for longer recording time before overwriting the older recordings.

Remote 5MP Live View

View high-quality 5MP Super HD live stream on your smart devices without all the data.

Built to Brave Extreme Hot & Cold Climates

Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

Metal

Rugged Housing

140 °F | 60 °C

Hot Rating

-40 °F | -40 °C

Cold Rating

IP67

Water Rating

More Smart Features on This Top-Grade System

4K Ultra HD DVR

This 8CH DVR supports up to 4K Ultra HD analog security cameras to capture clearer pictures.

2/4 TB Local Storage

Save videos to the built-in 2/4 TB hard disk drive for local storage without monthly cloud storage fees.

Remote Access & Motion Alerts

Get unlimited remote control and real-time app push notifications & email alerts when there are motion events.

24/7 Record Without Internet

The DVR & cameras link to each other after plug in & record videos 24/7 without Internet.

Specification

Download NAK500 Specification

Camera

Image Sensor5MP CMOS Image Sensor	Video Resolution2560 (H) X 1944 (V)
Lens3.6 mm	Angle of View80.1°
Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light	Signal SystemTVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps CVI: 4MP@30 fps, 4MP@25 fps AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps CVBS: PAL/NTSC
Number of Warm Light1	Light DistanceUp to 100 ft/30 m
DNR3D DNR	Wide Dynamic Range130 dB WDR
Video OutputHD BNC X1

Image Sensor5MP CMOS Image Sensor

Lens3.6 mm

Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light

Number of Warm Light1

DNR3D DNR

Video OutputHD BNC X1

Video Resolution 2560 (H) X 1944 (V)

Angle of View 80.1°

Signal System TVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
CVI: 4MP@30 fps, 4MP@25 fps
AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
CVBS: PAL/NTSC

Light Distance Up to 100 ft/30 m

Wide Dynamic Range 130 dB WDR

General

HousingMetal	ColourWhite
Operating PowerDC 12 V	Indoor/OutdoorIndoor/Outdoor
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C	Dimension68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
Weatherproof RatingIP67	Weight0.77 lb./ 350 g

HousingMetal

Operating PowerDC 12 V

Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C

Weatherproof RatingIP67

Colour White

Indoor/Outdoor Indoor/Outdoor

Dimension 68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")

Weight 0.77 lb./ 350 g

Video & Audio

Video CompressionH.264/H.264+/H.265/H.265+	Video Input8CH Analog HD/Analog + 2CH IP
Video OutputVGA up to 1080p; HDMI up to 4K	Audio Input/Output1/1 RCA
Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF	Analog HD Playback Resolution4K @8 fps/5MP @12 fps/4MP @15 fps/3MP @18 fps/ 1080p/720p/WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)
IP Camera Input4CH	IPC Recording ResolutionUp to 6MP
IPC Playback ResolutionUp to 6MP	Max Playback Channel8CH 1080p

Video CompressionH.264/H.264+/H.265/H.265+

Video OutputVGA up to 1080p; HDMI up to 4K

Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

IP Camera Input4CH

IPC Playback ResolutionUp to 6MP

Video Input 8CH Analog HD/Analog + 2CH IP

Audio Input/Output 1/1 RCA

Analog HD Playback Resolution 4K @8 fps/5MP @12 fps/4MP @15 fps/3MP @18 fps/
1080p/720p/WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)

IPC Recording Resolution Up to 6MP

Max Playback Channel 8CH 1080p

Hard Drive

HDD1 SATA Interface

HDD CapacityUp to 8 TB Capacity

HDD1 SATA Interface

HDD Capacity Up to 8 TB Capacity

DVR General

Network InterfaceRJ45 X1(10/100 M/1,000 M)	BNC Output-
RS4850	Alarm Input/Output-
USBUSB 2.0 X1 + USB 3.0 X1	Working Condition-14 °F – 131 °F/-10 °C – 55 °C
Dimensions (W x H x D)315 × 242 × 45 mm	Weight (Without Hard Disk)≤ 2 kg (4.4 lbs.) (Without HDD)

Network InterfaceRJ45 X1(10/100 M/1,000 M)

RS4850

USBUSB 2.0 X1 + USB 3.0 X1

Dimensions (W x H x D)315 × 242 × 45 mm

BNC Output -

Alarm Input/Output -

Working Condition -14 °F – 131 °F/-10 °C – 55 °C

Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)

Excellent system

Camera colour night vision is superb with integral white LED - which is not so bright to be distracting.
At very low light there is some mild flicker which I suspect is due to the system running at 60Hz inter-modulating with the 50Hz mains.
DVR very easy to set up and performs perfectly -
- except fan is not temperature controlled and too noisy to be in occupied room.
- BNCs are too close together making difficult to use
- 12V supply for cameras is at DVR end - so 5 PSUs all together !!
- camera leads too short making some installations problematic

Notwithstanding those it is an excellent system for the money.

Good for the money

Picture quality not bad at all night vision is pretty good aswell.
Of a night the light below is permanently on doesn't bother me deterant if anything, the tails coming out of the camera itself bit on the short side for going through a cavity wall they just made it but no spare. the fan is a little noise I switched it for a much quieter one it is in my bedroom, the app for the phone brilliant

Excellent value & quality

Cameras are superb. DVR is well-featured. Remote viewing view via internet/4G works really well. Great value. Very pleased

NightChroma NAK500 5MP 8 Chanell

Prompt Delivery everything well pack & looks good well impressed up to now.
Not installed yet waiting for some better weather and my son to install it for me.
I am to old to be climbing ladders I will do an update when it's up and running.
