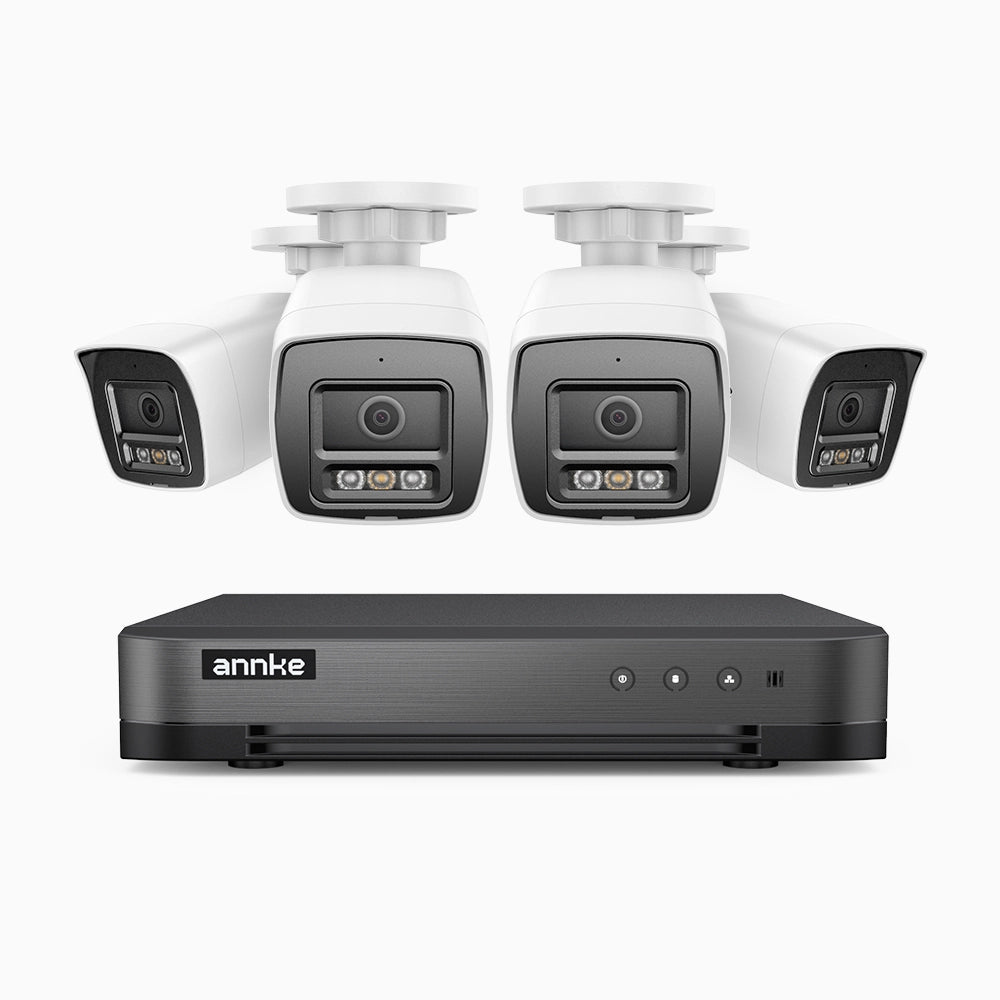

H800 - 4K 8 Channel 4 Cameras PoE Security CCTV System, Human & Vehicle Detection, Built-in Mic, Colour & IR Night Vision, RTSP Supported

H800 - 4K 8 Channel 4 Cameras PoE Security CCTV System, Human & Vehicle Detection, Built-in Mic, Colour & IR Night Vision, RTSP Supported

£295.99

£473.99

VAT Included

SKU: N48PAW+I91DL0104*4

Note: C800 Turret (1-cam) is now on 30% off DOTW sale
Appearance
Lens
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 4 , 4K 8MP , 8CH NVR , Built-in Microphone , Bullet , Dome , EXIR Night Vision , Turret

    H800 – Best 4K Security Camera System

    Make 4K UHD Protection Available at Every Angle

    Make 4K UHD Protection Available at Every Angle

  • 8CH

    NVR
    Support Max. 8 Cams

  • 4 Cams

    4K UHD
    Cover Every Angle

  • 2.8/4 MM

    Up to 96° FoV
    Wider Coverage

  • 100 FT

    EXIR Night Vision
    View Clearly at Night

  • Unrivaled 4K in All Environments

    H800 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

    EXIR 2.0 Night Vision Tech with Smart IR

    EXIR 2.0 provides fast heat dissipation for long lifespan, improves the utilization of light greatly and keeps the spiders & insects away from the lens. It also removes the IR reflection, ensuring up to 100 ft night vision distance.

    Smart IR fixes the overexposed & underexposed image issues at night, providing clear videos in extremely low-light conditions.

    High-Fidelity Audio Recording

    The built-in noise-cancelling microphone records clear voice from up to 20 ft away, enhancing the security coverage & the ability to interpret events. (Note: The listen-audio can be disabled.)

    True Plug & Play PoE Setup

    The PoE connection is perfect, as both video & power are transferred via the same network cable, and gives you flexible installation. You can run a single Ethernet cable between the camera & NVR up to 330 ft. For longer distance, you can hook up a PoE switch (not included).

    Advanced H.265+ Video Format

    ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 4K quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 4K Live View

    View high-quality 4K Ultra HD live stream on your smart devices without all the data.

  • A Truly Weatherproof Security Camera

    Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

    Check IP67 Weatherproof Real Performance

  • Metal & ABS

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Remote Viewing on the Go

    This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

    Small on Prices, Big on Features

  • Support RTSP

    Integrate the system to third-party software 4K cameras, like Blue Iris, Synology, etc.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Instant Motion Alerts

    Receive real-time app push notifications & email alerts when there are motion events.

  • 24/7 Record Without Internet

    The NVR & cameras link to each other after plug in & record videos 24/7 without Internet.

  • Specification

    Download H800 Specification

    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeUp to 30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Colour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic Colour White & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") Weight0.6 lb./285 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
    Colour White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.6 lb./285 g
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Video Bitrate32 Kbps - 16 Mbps Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Video Bitrate32 Kbps - 16 Mbps
    Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light RangeUp to 30 m
    Audio InputBuilt-in Microphone, record with audio
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Lens 4 mm
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic Colour White
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 & IK08
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") Weight1.2 lb./550 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
    Colour White
    Hardware Reset Yes
    Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67 & IK08
    Weight 1.2 lb./550 g
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Colour : 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic Colour White
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Weight0.7 lb./340 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
    Colour White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.7 lb./340 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100 M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100 M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port

    Customer Reviews

    Based on 48 reviews
    54%
    (26)
    38%
    (18)
    8%
    (4)
    0%
    (0)
    0%
    (0)
    T
    Tim Ward
    Easy install

    I found this CCTV system relstively easy to install. My only comment is that the CT 5 ethernet cable is not the best quality or robust. I

    L
    Lorraine Stubbins
    Cameras

    Brilliant cameras really clear worth every penny

    R
    Rob Hardy
    Cameras System Reduced Night Vision

    2 of 4 cameras next to a white wall so don’t record very good images in the dark, I guess due to reflection. Other 2 cameras are great.
    Easy to install and use with plug and play

    J
    J Case
    Purchase of new H800 camera system

    The initial ordering was not straight forward where I was offered a GIFT especially for me, which I then found out I would have to pay for, so I declined. Then I had to wait nearly a month as the cameras were out of stock. BUT the wait was worthwhile, the system was very easy to install and set up and the quality of picture and audio is excellent. The night vision is also very good.

    I
    IAN CELLINI
    H800 4k

    System easy to set up. Plug and play. The app is very hit and miss. Reviewing footage sometimes has skips in the data. Other than that, it a good system at a good price. The POE saves a lot of effort and wiring.
