ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

£89.99
£129.99
£89.99
Lock Box: No Lock Box
Subtotal: £89.99
ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

£129.99 £89.99

ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

£129.99 £89.99
Lock Box: No Lock Box

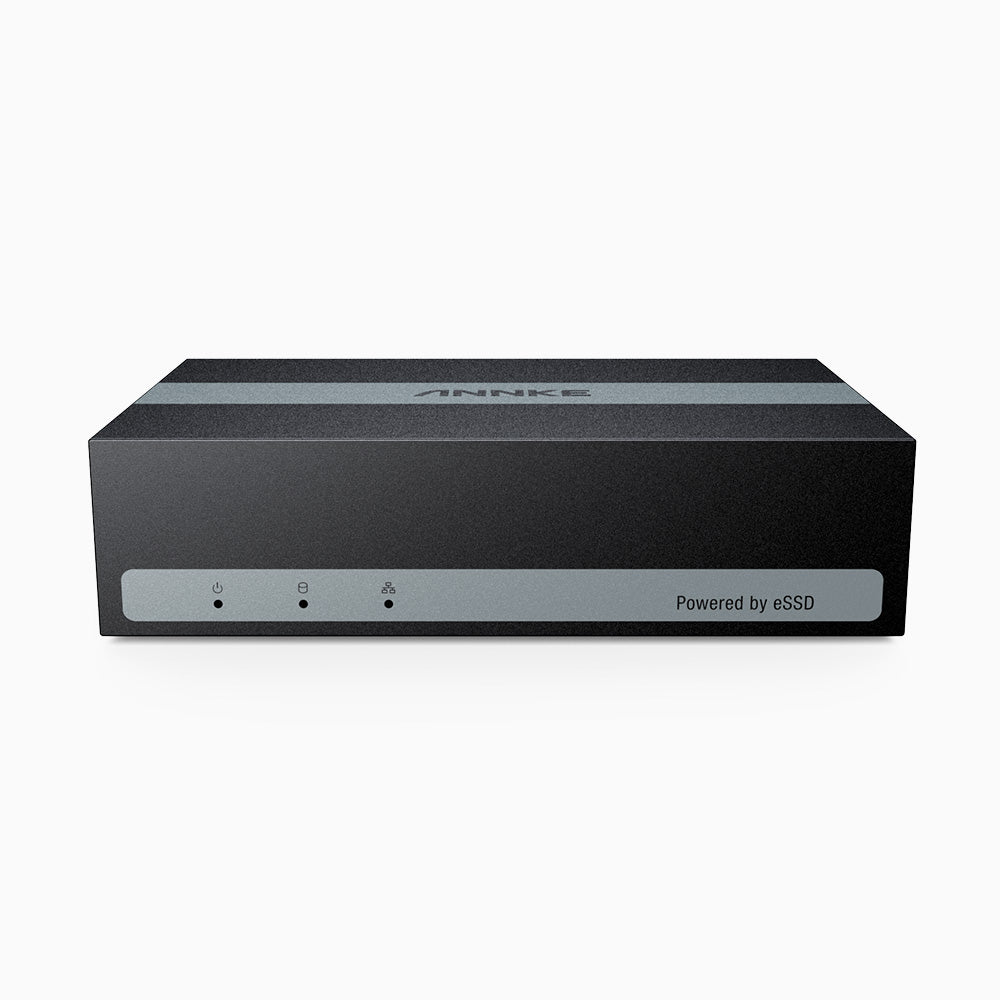

ANNKE ASD810

New-Gen eSSD DVR
for More Energy-efficient Surveillance

  • 8CH

    DVR
    3K Lite

  • Auto

    Higher Bitrate
    Scene-Adaptive

  • eSSD

    Built-in 1024 GB
    2-Week Record

  • Eco-friendly

    Low Consumption
    Cost Reduction

  • Powered by An Embedded Solid State Drive

    Sustainable eSSD tech embraces future trend which means no HDD installation is needed. Equipped with a built-in 1024 GB eSSD, the 3K Lite ensures ample storage space for your video recordings. Say goodbye to worries about running out of storage and enjoy the peace of mind that comes with extensive data retention.

    Smart Scene-adaptive Bitrate Control

    When an eDVR analyzes an area with human beings or vehicles, it accurately allocates a higher bitrate to ensure higher video quality. A low-complexity scene with less or no motion will generate a stream with a lower bitrate. Make the most of your storage.

    Sustainable eDVR Contribute to the Earth

    Thanks to advanced eSSD technology, the eDVR Series consumes less power than traditional DVRs, delivering both economic and environmental advantages. eDVR consumes 45% less energy, which means an energy saving of 40-45 kilowatt hours per year, which is equivalent to charging an iPhone 13 3,000 times.

    Accurate Alarms by Motion Detection 2.0

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights, users can focus on real threats.

    All-in-One Compatibility

    This DVR supports max. 3K@20fps TVI camera access, 5MP TVI, 1080P AHD, CVI, CVBS analog camera, and 2 6MP IPCs. Coaxial audio access is also compatible to be synchronized with the same cable as the camera.

    Up to 2-Week Long Operation

    This DVR with an eSSD can record up to 14 days long with eight 1080P cameras connected. It's ease to setup your security web without installing any HDD like ever before.

    Palm-Sized eDVR Fits Everywhere

    The highly compact eDVR fits virtually anywhere. It’s easy to set up in your workplace or home office. Place the eDVR just about anywhere, even tight spaces. When it's running, you will hardly notice it’s there. And when you need to access it, no heavy lifting is required.

    Specification

    Download ASD810 Specification

    What's in the Box
  • 1X DVR
  • 1X USB Mouse
  • 1X Power Adapter
  • 1X HDMI Cable
  • 1X Network Cable
  • 1X User's Manual For DVR
  • Video & Audio
    Video CompressionH.265 Pro/H.265/Scene-Adaptive Bitrate Control coding Video Input8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
    Video OutputHDMI/VGA up to 1080p/60 Hz Audio Input/Output8-ch via coaxial cable/1-ch via HDMI
    Supported Camera Types1)TVI Input: 3K@20fps,5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@60/50/30/25 fps;
    2)AHD Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    3)CVI Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    4)CVBS: Support
    Analog HD Playback ResolutionMain stream:
    When 1080p Lite mode not enabled:
    For 5 MP stream access:
    5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 1080p stream access:
    1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
    For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled:
    5 MP/3K Lite@12 fps; 4 MP Lite/@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30fps (N)
    IP Camera Input2-CH Video OutputHDMI/VGA up to 1080p/60 Hz
    Max Playback Channel4CH Motion Detection 2.0(Human/Vehicle Analysis)Up to 8CH,
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
    ONVIFSupport IPC Playback ResolutionUp to 6MP
    Video CompressionH.265 Pro/H.265/Scene-Adaptive Bitrate Control coding
    Video OutputHDMI/VGA up to 1080p/60 Hz
    Supported Camera Types1)TVI Input: 3K@20fps,5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@60/50/30/25 fps;
    2)AHD Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    3)CVI Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    4)CVBS: Support
    IP Camera Input2-CH
    Max Playback Channel4CH
    ONVIFSupport
    Video Input 8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
    Audio Input/Output 8-ch via coaxial cable/1-ch via HDMI
    Analog HD Playback Resolution Main stream:
    When 1080p Lite mode not enabled:
    For 5 MP stream access:
    5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 1080p stream access:
    1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
    For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled:
    5 MP/3K Lite@12 fps; 4 MP Lite/@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30fps (N)
    Video Output HDMI/VGA up to 1080p/60 Hz
    Motion Detection 2.0(Human/Vehicle Analysis) Up to 8CH,
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
    IPC Playback Resolution Up to 6MP
    Network
    Total Bandwidth96 Mbps,Incoming bandwidth: 8 Mbps Remote Connection64
    Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™,  HTTPS Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Total Bandwidth96 Mbps,Incoming bandwidth: 8 Mbps
    Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™,  HTTPS
    Remote Connection 64
    Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Hard Drive
    SSDBuild in SSD SSD CapacityBuilt-in 1024 GB eSSD (960 GB available) Note:
    The device can store about 2 weeks videos for 8-ch analog cameras (default parameters),this estimation is for  reference only.
    SSDBuild in SSD
    SSD Capacity Built-in 1024 GB eSSD (960 GB available) Note:
    The device can store about 2 weeks videos for 8-ch analog cameras (default parameters),this estimation is for  reference only.
    Auxiliary Interface
    USBUSB 2.0 X2
    USBUSB 2.0 X2
    General
    Working Temperature14 °F – 113 °F/-10 °C – 45 °C Dimensions (W x D x H)172 X 121.6 X 46 mm (6.7x4.79x1.81inch)
    Weight≤0.5Kg (With eSSD,1.1lb.) Operating PowerDC12V,1A , ≤ 8.2 W (With eSSD)
    Working Temperature14 °F – 113 °F/-10 °C – 45 °C
    Weight≤0.5Kg (With eSSD,1.1lb.)
    Dimensions (W x D x H) 172 X 121.6 X 46 mm (6.7x4.79x1.81inch)
    Operating Power DC12V,1A , ≤ 8.2 W (With eSSD)
