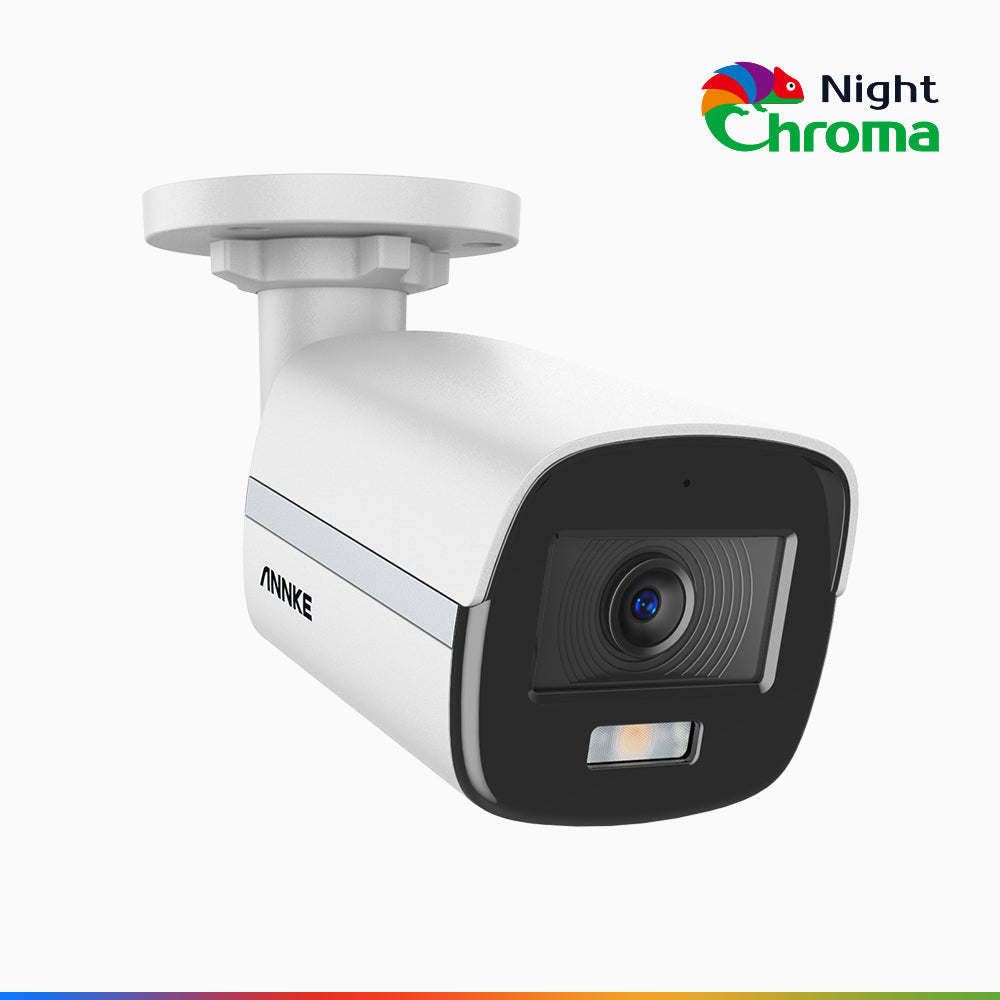

NightChroma^TM NCA500 - 5MP Acme Color Night Vision Security TVI Camera, f/1.0 Aperture (0.0005 Lux), 121° FoV, Active Alignment, IP67

NightChroma<sup>TM</sup> NCA500 - 5MP Acme Color Night Vision Security TVI Camera, f/1.0 Aperture (0.0005 Lux), 121° FoV, Active Alignment, IP67

NightChroma^TM NCA500 - 5MP Acme Color Night Vision Security TVI Camera, f/1.0 Aperture (0.0005 Lux), 121° FoV, Active Alignment, IP67

£118.99

VAT Included

SKU: CR1CJ04

Secure Checkout With:

Paint Starry Night into
5MP Colourful World

5MP

Super HD
See Further & Clearer

COLOUR

Night Vision
View Colours at Night

80° FOV

3.6 mm Lens
Cover Wide Areas

IP67

Weatherproof
Brave All Climates

World’s FIRST & ANNKE-ONLY
Acme Colour Night Vision

NightChorma^TM NCA500 takes smart security to the next level with unrivaled acme colour night vision. Say goodbye to boring B&W or blurry colour night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colourful world even in 0.0005 lux conditions without ambient lighting, or 0 lux with the supplement light.

Only security cameras with f/1.0 super aperture can capture acme colour night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colourful details.

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

The soft supplement light turns on automatically in 0 lux illumination to ensure the best colour night vision without glare. Remove overexposed or underexposed issues & capture 4MP footages with balanced lighting.

World’s FIRST & ANNKE-ONLY Acme Colour Night Vision

f/1.0 Super Aperture

Powerful BSI Sensor

Active Alignment Tech

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

100 ft Supplement Light

2K 5MP Super HD at Smooth 20 fps

The 5MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 30 fps in 5MP Super HD, or 30 fps in 4MP. This high frame rate will help capture the precise & vivid moments in your gardens, garages, studios, luxury or jewelry stores, candy houses.

4 Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – 130 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colours that wasn’t possible before.

4 Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – 120 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colours that wasn’t possible before.

130 dB True WDR

BLC

HLC

3D DNR

24/7 Security with ANNKE 4K Ultra HD DVR

ANNKE 4K UHD DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA500 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees.

Note: NCA500 needs a DVR for live stream & recording, and it CANNOT work standalone.

Built to Brave Extreme Hot & Cold Climates

Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

Metal

Rugged Housing

140 °F | 60 °C

Hot Rating

-40 °F | -40 °C

Cold Rating

IP67

Water Rating

Specification

Download NCA500 Specification

What's in the Box

➀ NCA500 Security Camera(s)

➁ BNC Cables(s)

➂ Mounting Screw Bag(S)(The quantity varies based on your choice.)

➃ 1X User Manual

Camera

Image Sensor5MP CMOS Image Sensor	Video Resolution2560 (H) X 1944 (V)
Lens3.6 mm	Angle of View80.1°
Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light	Signal SystemTVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps CVI: 4MP@30 fps, 4MP@25 fps AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps CVBS: PAL/NTSC
Number of Warm Light1	Light DistanceUp to 100 ft/30 m
DNR3D DNR	Wide Dynamic Range130 dB WDR
Video OutputHD BNC X1

Image Sensor5MP CMOS Image Sensor

Lens3.6 mm(Bullet)/2.8mm(Turret)

Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light

Number of Warm Light1

DNR3D DNR

Video OutputHD BNC X1

Video Resolution 2560 (H) X 1944 (V)

Angle of View 80.1°

Signal System TVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
CVI: 4MP@30 fps, 4MP@25 fps
AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
CVBS: PAL/NTSC

Light Distance Up to 100 ft/30 m

Wide Dynamic Range 130 dB WDR

General

HousingMetal	ColorWhite
Operating PowerDC 12 V	Indoor/OutdoorIndoor/Outdoor
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C	Dimension68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
Weatherproof RatingIP67	Weight0.77 lb./ 350 g

HousingMetal

Operating PowerDC 12 V

Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C

Weatherproof RatingIP67

Colour White

Indoor/Outdoor Indoor/Outdoor

Dimension 68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")

Weight 0.77 lb./ 350 g

Good cameras

The NCA500 was a perfect camera except for one thing which is that they require the led light to be on constantly at night, with no option to configure the light to come on at night only when motion is detected. Otherwise still a very good camera depending on ones requirements.

Great quality for a great price

I have fitted this camera on a system which has other more expensive cameras from one of the leading manufacturers and there is almost no difference, the only one is the Annke camera has a slightly wider field of view. The image quality on all the color vu cameras I have is not as good as that from "normal" cameras within the same price range

Acme color night vision

Excellent value for the price. Night color is first class with a lot of detail in the picture.

very good night camera,,would give max rating but due to unable to turn as not need

would give max rating but due to unable to turn light of as not need

Night Vision

Superb day & night vision in colour amazing.
