ANNKE NAK500 8 Channel 6 Cameras Acme Colour Night Vision Wired CCTV System - ANNKE Store

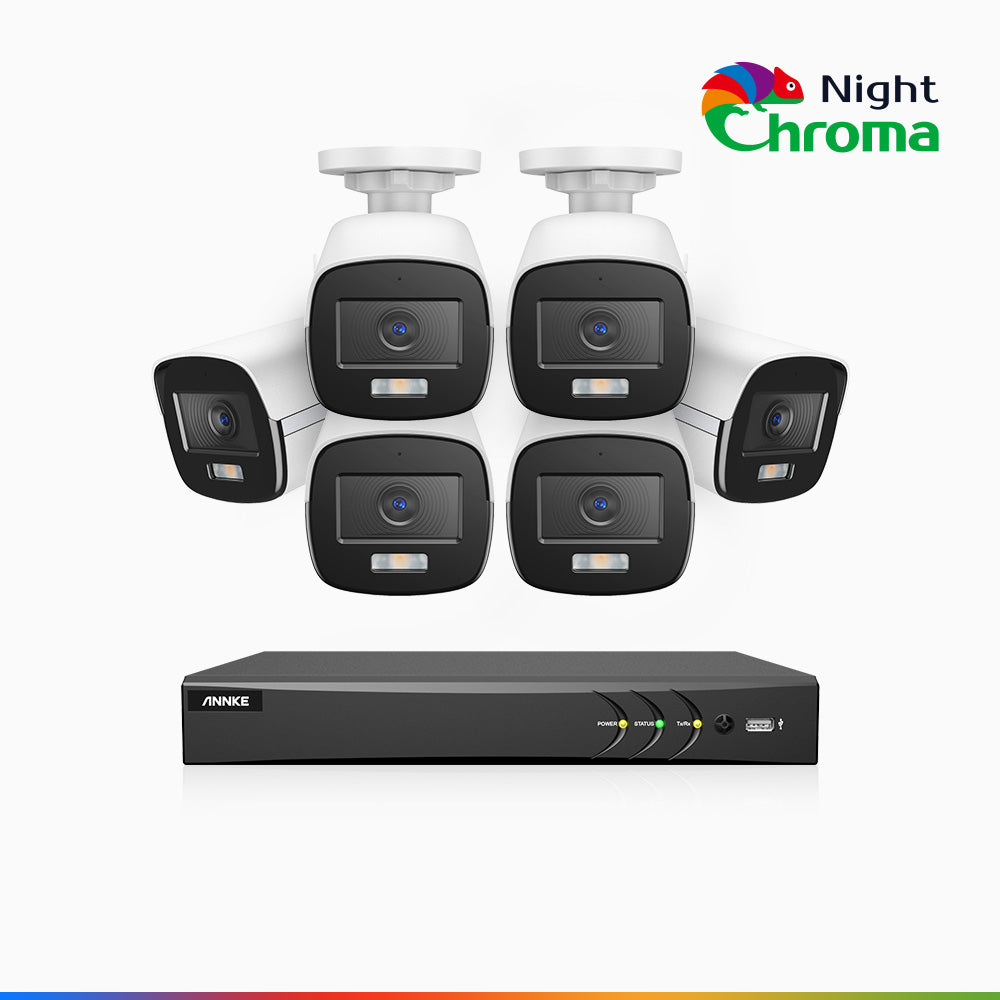

NightChromaTM NAK500 - Updated Version, 3K 8 Channel 6 Cameras TVI Security System, Acme Colour Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

NightChromaTM NAK500 - Updated Version, 3K 8 Channel 6 Cameras TVI Security System, Acme Colour Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

£301.99

£423.99

VAT Included

SKU: AK-DT81DX-CR1CY06

Appearance
HDD Capacity

Tags: 3K , 6 , 8CH DVR , ACE Color Night Vision , Built-in Microphone , Bullet , Turret

Paint Starry Night into
3K Colourful World

  • 3K

    Super HD
    Clear Image

  • Colour

    Night Vision
    View Colours at Night

  • 102° FOV

    2.8 MM Lens
    Cover Wide Areas

  • IP67

    Weatherproof
    Brave All Climates

  • ANNKE-Only Acme Colour Night Vision

    Say goodbye to boring B&W or blurry colour night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colourful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.

    Only security cameras with f/1.0 super aperture can capture acme colour night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

    The 3K CMOS image sensor empowers this camera to capture astonishingly sharp and detailed visuals, providing a resolution that surpasses standard security cameras. With a superior pixel count, every frame is packed with rich, vibrant colours.

    The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

    The soft supplement light turns on automatically in 0 lux illumination to ensure the best colour night vision without glare. Remove overexposed or underexposed issues & capture 3K footages with balanced lighting.

    Audio Recording with Built-in Mic

    The camera's built-in microphone supports coaxial transmission, allowing you to hear and record crisp, clear audio without using any additional cables to power the microphone.

    4-in-1 HD TVI/CVI/AHD/CVBS

    One port for four switchable signals(TVI/AHD/CVI/CVBS), you can select from a wide range of compatibility with the camera’ s selectable output.

    Top-of-the-Line Image Enhancement Technologies

    The wired camera adopts 4 incredible image enhancement technologies – digital WDR, 2D DNR, BLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colours that wasn’t possible before.

    24/7 Security with ANNKE 4K Ultra HD DVR

    ANNKE 4K UHD DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA500 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees. Note: NCA500 needs a DVR for live stream & recording, and it CANNOT work standalone.

    Uninterrupted Surveillance, Even in Extreme Environment

    Engineered to thrive in the harshest environments while providing steadfast surveillance capabilities. With an IP67 rating for water and dust resistance, coupled with an impressive operating temperature range of -40 °F to 140 °F (-40 °C to 60 °C), this camera is the epitome of durability and reliability.

  • -40 °F | -40 °C

    Cold Rating

  • Plastic

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

  • Specification

    Download NCA500 Specification

    Download ANNKE 4K DVR Specification

    What's in the Box
  • 2X Camera(s)
  • 1X BNC Cables(s)
  • 1X Power Adapter
  • 1X Mounting Screws Bag
  • 1X User's Manual For Camera
  • Camera
    Image sensor3K CMOS Image sensor Video Resolution2960 (H) × 1665 (V) (16:9)
    Signal SystemPAL/NTSC Lens2.8mm
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Min.Illumination Colour:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light Angle of ViewHorizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
    Supplement Light type1 white Light Supplement Light Rangewhite Light : Up to 20 m
    Wide Dynamic RangeDigital WDR AudioBuilt-in mic
    Day/Night Mode Colour Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor3K CMOS Image sensor
    Signal SystemPAL/NTSC
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Min.Illumination Colour:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light
    Supplement Light type1 white Light
    Wide Dynamic RangeDigital WDR
    Day/Night Mode Colour
    Video Resolution 2960 (H) × 1665 (V) (16:9)
    Lens 2.8mm
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Angle of View Horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
    Supplement Light Range white Light : Up to 20 m
    Audio Built-in mic
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    General
    HousingPlastic ColourWhite
    Operating Power12 VDC ± 25% ConsumptionMax. 2.9 W
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67 Dimension (L x W x H)161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
    WeightApprox. 238 g (0.52 lb.)
    HousingPlastic
    Operating Power12 VDC ± 25%
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof RatingIP67
    WeightApprox. 238 g (0.52 lb.)
    Colour White
    Consumption Max. 2.9 W
    Indoor/Outdoor Indoor/Outdoor
    Dimension (L x W x H) 161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
