ANNKE WS500 Add-on Camera, 5MP Resoluluton - ANNKE Store

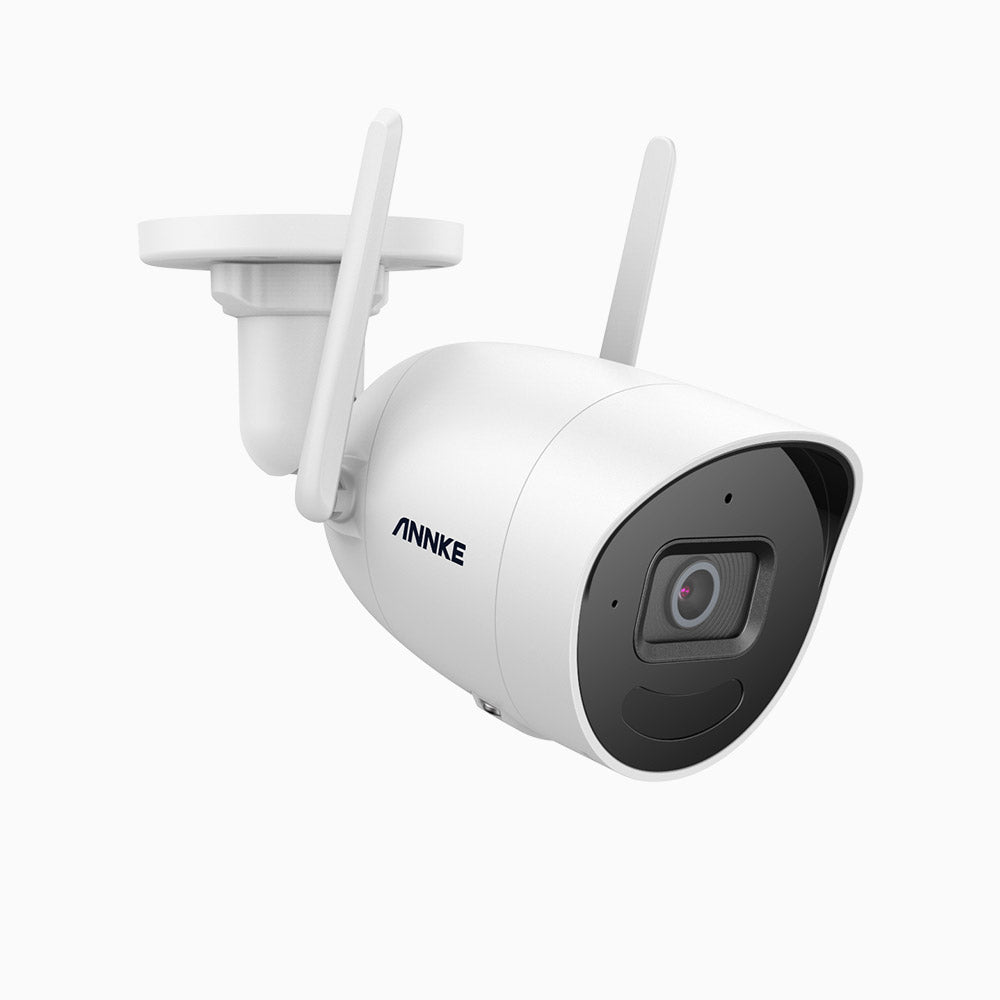

WS500 Add-on Camera, 5MP Resoluluton, IP66

WS500 Add-on Camera, 5MP Resoluluton, IP66



Tags: 5MP Super HD

NOTICE: This camera is only compatible with WS500 wileless systems as below, it can't be used standalone.

 WS500 8-Channel 4 Camera System

 WS500 8-Channel 5 Camera System

 WS500 8-Channel 6 Camera System

 WS500 8-Channel 8 Camera System


Video Resolution5MP (2560*1920) Image Sensor1/2.8" Progressive Scan CMOS
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Video CompressionH.265+/H.264+/H.265/H.264
Lens2.8 mm Angle of ViewHorizontal FoV: 97°, Vertical FoV: 52°, Diagonal FoV: 114°
Number of Infrared LEDs2 Night Vision DistanceUp to 100 ft/30 m
IR-Cut FilterYes EthernetRJ45 X1 (10 M/100 M)
WirelessIEEE802.11b/g/n HousingFront Cover: Plastic, Camera Body: Metal
Operating PowerDC 12 V Operating Temperature-22 °F — 140 °F/-30 °C — 60 °C
Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP66
Dimension (L X W X H)175.6 X 73.0 X 89.1 mm (6.9'' X 2.9'' X 3.5'') Weight330 g (0.7 lb.)
Video Resolution5MP (2560*1920)
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Lens2.8 mm
Number of Infrared LEDs2
IR-Cut FilterYes
Operating PowerDC 12 V
Dimension (L X W X H)175.6 X 73.0 X 89.1 mm (6.9'' X 2.9'' X 3.5'')
Image Sensor 1/2.8" Progressive Scan CMOS
Video Compression H.265+/H.264+/H.265/H.264
Angle of View Horizontal FoV: 97°, Vertical FoV: 52°, Diagonal FoV: 114°
Night Vision Distance Up to 100 ft/30 m
Ethernet RJ45 X1 (10 M/100 M)
Housing Front Cover: Plastic, Camera Body: Metal
Operating Temperature -22 °F — 140 °F/-30 °C — 60 °C
Weatherproof Rating IP66
Weight 330 g (0.7 lb.)

Customer Reviews

Based on 3 reviews
Alan M
Great Cameras - When they connect !

I orginally bought the system with 4 cameras and added two, recently adding two more to make the maximum of 8 supported. Despite being used in a small home environment, and the Cameras all showing fairly good signal strength, I can rarely get all 8 to connect at once, and when trying to use the "Repeater" function ( supposed to improve connections to cameras further away with poorer signal strength ) it seems to make matters worse ! I'm still experimenting with the numerous settings, and while Annke Support Team have been very helpful, it takes a few days before they answer by email. I have not been able to find a comprehensive set of instructions to explain all of the different settings in the various Menus, and what effect they have, which would be REALLY useful ! I'm hoping to eventually get all 8 cameras connected and recording together.

Richard Ford

Resolution is great with only 4 cameras all works well.
When I add camera 5 and six the system becomes unstable and I get drop out. All cameras are within 5 meters of base station. I bought the two extra cameras and have now deleted one because it is better to have five working rather than six that keep dropping out. System states it will support 8 cameras. My experience is it works well with five but not more. Very pleased with 5 camera system but wish I had not bought the sixth camera because that is now a spare and not being used. Annke customer service department very helpful. overall pleased with my system and would recommend the product.


Easy to set up when you know how, its a pity they don't supply instruction with the camera.
